Gamme HP
Poutrelles-pieux à larges ailes

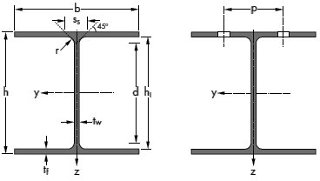

Poutrelles-pieux à larges ailesDimensions
suivant norme d´usine
| Désignation | G kg/m | Dimensions | I cm² | Valeurs statiques | Equivalent 1 | Equivalent 2 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| h mm | b mm | tw mm | tf mm | r mm | Axe fort | Axe faible | |||||||||||
| Iy cm4 | Wely cm³ | Wply cm³ | iy cm | Iz cm4 | Welz cm³ | Wplz cm³ | iz cm | ||||||||||
| HP 200 x 43 | 42,5 | 200,0 | 205,0 | 9,0 | 9,0 | 10,0 | 54,10 | 3.888 | 389,0 | 435,0 | 8,47 | 1.294 | 126,0 | 193,0 | 4,89 | UBP 203 x 203 x 45 | |
| HP 200 x 53 | 53,5 | 204,0 | 207,0 | 11,3 | 11,3 | 10,0 | 68,10 | 4.977 | 488,0 | 551,0 | 8,55 | 1.673 | 162,0 | 249,0 | 4,96 | UBP 203 x 203 x 54 | |
| HP 220 x 57 | 57,2 | 210,0 | 224,5 | 11,0 | 11,0 | 18,0 | 72,90 | 5.729 | 546,0 | 614,0 | 8,87 | 2.079 | 185,0 | 286,0 | 5,34 | ||
| HP 250 x 62 | 62,7 | 246,0 | 256,0 | 10,5 | 10,7 | 13,0 | 79,80 | 8.753 | 712,0 | 793,0 | 10,47 | 2.995 | 234,0 | 358,0 | 6,13 | UBP 254 x 254 x 63 | |
| HP 250 x 85 | 85,4 | 254,0 | 260,0 | 14,4 | 14,4 | 13,0 | 108,80 | 12.305 | 969,0 | 1.096,0 | 10,64 | 4.225 | 325,0 | 500,0 | 6,23 | UBP 254 x 254 x 85 | |
| HP 260 x 75 | 75,0 | 249,0 | 265,0 | 12,0 | 12,0 | 24,0 | 95,60 | 10.646 | 855,0 | 959,0 | 10,56 | 3.733 | 282,0 | 435,0 | 6,25 | ||
| HP 260 x 87 | 87,3 | 253,0 | 267,0 | 14,0 | 14,0 | 24,0 | 111,20 | 12.586 | 995,0 | 1.124,0 | 10,64 | 4.455 | 334,0 | 516,0 | 6,33 | ||
| HP 305 x 79 | 78,4 | 299,3 | 306,4 | 11,0 | 11,0 | 15,2 | 99,90 | 16.331 | 1.091,0 | 1.210,0 | 12,79 | 5.278 | 345,0 | 527,0 | 7,27 | HP 310 x 79 | UBP 305 x 305 x 79 |
| HP 305 x 88 | 88,0 | 301,7 | 307,8 | 12,4 | 12,3 | 15,2 | 112,10 | 18.425 | 1.221,0 | 1.360,0 | 12,82 | 5.984 | 389,0 | 595,0 | 7,31 | UBP 305 x 305 x 88 | |
| HP 305 x 95 | 94,9 | 303,7 | 308,7 | 13,3 | 13,3 | 15,2 | 121,00 | 20.045 | 1.320,0 | 1.474,0 | 12,87 | 6.529 | 423,0 | 648,0 | 7,35 | HP 310 x 93 | UBP 305 x 305 x 95 |
| HP 305 x 110 | 110,0 | 307,9 | 310,7 | 15,3 | 15,4 | 15,2 | 140,10 | 23.563 | 1.531,0 | 1.720,0 | 12,97 | 7.709 | 496,0 | 762,0 | 7,42 | HP 310 x 110 | UBP 305 x 305 x 110 |
| HP 305 x 126 | 126,1 | 312,3 | 312,9 | 17,5 | 17,6 | 15,2 | 160,60 | 27.408 | 1.755,0 | 1.986,0 | 13,06 | 9.002 | 575,0 | 885,0 | 7,49 | HP 310 x 125 | UBP 305 x 305 x 126 |
| HP 305 x 132 | 131,6 | 313,7 | 314,0 | 18,3 | 18,3 | 15,2 | 167,60 | 28.710 | 1.830,0 | 2.076,0 | 13,09 | 9.460 | 603,0 | 928,0 | 7,51 | HP 310 x 132 | |
| HP 305 x 149 | 149,1 | 318,5 | 316,0 | 20,6 | 20,7 | 15,2 | 189,90 | 33.067 | 2.076,0 | 2.370,0 | 13,20 | 10.910 | 691,0 | 1.066,0 | 7,58 | UBP 305 x 305 x 149 | |
| HP 305 x 180 | 180,0 | 326,7 | 319,7 | 24,8 | 24,8 | 15,2 | 229,30 | 40.973 | 2.508,0 | 2.897,0 | 13,37 | 13.546 | 847,0 | 1.313,0 | 7,69 | ||
| HP 305 x 186 | 186,0 | 328,3 | 320,9 | 25,5 | 25,6 | 15,2 | 237,00 | 42.610 | 2.596,0 | 3.003,0 | 13,41 | 14.143 | 881,0 | 1.366,0 | 7,73 | UBP 305 x 305 x 186 | |
| HP 305 x 223 | 222,9 | 337,9 | 325,7 | 30,3 | 30,4 | 15,2 | 284,00 | 52.699 | 3.119,0 | 3.653,0 | 13,62 | 17.577 | 1.079,0 | 1.680,0 | 7,87 | UBP 305 x 305 x 223 | |
| HP 310 x 79 | 78,3 | 299,0 | 306,0 | 11,0 | 11,0 | 15,0 | 99,70 | 16.268 | 1.088,0 | 1.207,0 | 12,77 | 5.258 | 344,0 | 525,0 | 7,26 | HP 305 x 79 | UBP 305 x 305 x 79 |
| HP 310 x 93 | 93,3 | 303,0 | 308,0 | 13,1 | 13,1 | 15,0 | 118,90 | 19.634 | 1.296,0 | 1.447,0 | 12,85 | 6.387 | 415,0 | 635,0 | 7,33 | ||
| HP 310 x 110 | 110,4 | 308,0 | 310,0 | 15,4 | 15,5 | 15,0 | 140,70 | 23.655 | 1.536,0 | 1.727,0 | 12,97 | 7.707 | 497,0 | 763,0 | 7,40 | HP 305 x 110 | UBP 305 x 305 x 110 |
| Désignation | G kg/m | Dimensions | I cm² | Valeurs statiques | Equivalent 1 | Equivalent 2 | |||||||||||
| h mm | b mm | tw mm | tf mm | r mm | Axe fort | Axe faible | |||||||||||
| Iy cm4 | Wely cm³ | Wply cm³ | iy cm | Iz cm4 | Welz cm³ | Wplz cm³ | iz cm | ||||||||||
| HP 310 x 125 | 124,6 | 312,0 | 312,0 | 17,4 | 17,4 | 15,0 | 158,70 | 27.027 | 1.733,0 | 1.960,0 | 13,05 | 8.823 | 566,0 | 870,0 | 7,46 | HP 305 x 126 | UBP 305 x 305 x 126 |
| HP 310 x 132 | 131,3 | 314,0 | 313,0 | 18,3 | 18,3 | 15,0 | 167,30 | 28.683 | 1.827,0 | 2.072,0 | 13,10 | 9.370 | 599,0 | 922,0 | 7,48 | HP 305 x 132 | |
| HP 320 x 88 | 88,5 | 303,0 | 304,0 | 12,0 | 12,0 | 27,0 | 112,70 | 18.743 | 1.237,0 | 1.379,0 | 12,90 | 5.634 | 371,0 | 572,0 | 7,07 | ||
| HP 320 x 103 | 102,8 | 307,0 | 306,0 | 14,0 | 14,0 | 27,0 | 131,00 | 22.053 | 1.437,0 | 1.611,0 | 12,97 | 6.704 | 438,0 | 677,0 | 7,15 | ||
| HP 320 x 117 | 117,3 | 311,0 | 308,0 | 16,0 | 16,0 | 27,0 | 149,50 | 25.476 | 1.638,0 | 1.849,0 | 13,06 | 7.815 | 507,0 | 786,0 | 7,23 | ||
| HP 320 x 147 | 146,7 | 319,0 | 312,0 | 20,0 | 20,0 | 27,0 | 186,90 | 32.671 | 2.048,0 | 2.339,0 | 13,22 | 10.160 | 651,0 | 1.011,0 | 7,37 | ||
| HP 320 x 184 | 184,1 | 329,0 | 317,0 | 25,0 | 25,0 | 27,0 | 234,50 | 42.343 | 2.574,0 | 2.979,0 | 13,44 | 13.332 | 841,0 | 1.311,0 | 7,54 | ||
| HP 360 x 84 | 84,3 | 340,0 | 367,0 | 10,0 | 10,0 | 15,2 | 107,40 | 23.207 | 1.365,0 | 1.498,0 | 14,70 | 8.243 | 449,0 | 683,0 | 8,76 | UBP 356 x 368 x 83 | |
| HP 360 x 108 | 108,1 | 346,0 | 370,0 | 12,8 | 12,8 | 15,0 | 137,70 | 30.287 | 1.751,0 | 1.937,0 | 14,83 | 10.814 | 585,0 | 891,0 | 8,86 | HP 360 x 109 | UBP 356 x 368 x 109 |
| HP 360 x 109 | 108,9 | 346,4 | 371,0 | 12,8 | 12,9 | 15,2 | 138,70 | 30.632 | 1.769,0 | 1.956,0 | 14,86 | 10.987 | 592,0 | 903,0 | 8,90 | HP 360 x 108 | UBP 356 x 368 x 109 |
| HP 360 x 132 | 132,0 | 351,0 | 373,0 | 15,6 | 15,6 | 15,0 | 168,20 | 37.478 | 2.136,0 | 2.381,0 | 14,93 | 13.505 | 724,0 | 1.107,0 | 8,96 | HP 360 x 133 | UBP 356 x 368 x 133 |
| HP 360 x 133 | 133,0 | 352,0 | 373,8 | 15,6 | 15,7 | 15,2 | 169,40 | 37.983 | 2.158,0 | 2.406,0 | 14,98 | 13.680 | 732,0 | 1.119,0 | 8,99 | HP 360 x 132 | UBP 356 x 368 x 133 |
| HP 360 x 140 | 140,2 | 352,0 | 392,0 | 16,0 | 16,0 | 15,0 | 178,60 | 40.274 | 2.288,0 | 2.547,0 | 15,02 | 16.077 | 820,0 | 1.252,0 | 9,49 | ||
| HP 360 x 152 | 152,0 | 356,4 | 376,0 | 17,8 | 17,9 | 15,2 | 193,70 | 43.972 | 2.468,0 | 2.767,0 | 15,07 | 15.877 | 845,0 | 1.293,0 | 9,05 | UBP 356 x 368 x 152 | |
| HP 360 x 174 | 173,9 | 361,4 | 378,5 | 20,3 | 20,4 | 15,2 | 221,50 | 51.009 | 2.823,0 | 3.186,0 | 15,18 | 18.463 | 976,0 | 1.497,0 | 9,13 | UBP 356 x 368 x 174 | |
| HP 360 x 180 | 180,2 | 362,9 | 378,8 | 21,1 | 21,1 | 15,2 | 229,50 | 53.036 | 2.923,0 | 3.306,0 | 15,20 | 19.144 | 1.011,0 | 1.552,0 | 9,13 | ||
| HP 400 x 117 | 117,0 | 347,0 | 389,0 | 13,4 | 13,4 | 15,0 | 149,10 | 33.162 | 1.911,0 | 2.113,0 | 14,91 | 13.155 | 676,0 | 1.030,0 | 9,39 | ||
| HP 400 x 122 | 122,4 | 348,0 | 390,0 | 14,0 | 14,0 | 15,0 | 155,90 | 34.770 | 1.998,0 | 2.212,0 | 14,93 | 13.851 | 710,0 | 1.082,0 | 9,42 | ||
| HP 400 x 131 | 131,0 | 350,0 | 390,0 | 15,0 | 15,0 | 15,0 | 166,90 | 37.418 | 2.138,0 | 2.374,0 | 14,97 | 14.841 | 761,0 | 1.161,0 | 9,43 | ||
| HP 400 x 135 | 134,8 | 351,0 | 391,0 | 15,4 | 15,4 | 15,0 | 171,70 | 38.620 | 2.201,0 | 2.446,0 | 15,00 | 15.355 | 785,0 | 1.198,0 | 9,46 | ||
| Désignation | G kg/m | Dimensions | I cm² | Valeurs statiques | Equivalent 1 | Equivalent 2 | |||||||||||
| h mm | b mm | tw mm | tf mm | r mm | Axe fort | Axe faible | |||||||||||
| Iy cm4 | Wely cm³ | Wply cm³ | iy cm | Iz cm4 | Welz cm³ | Wplz cm³ | iz cm | ||||||||||
| HP 400 x 140 | 140,2 | 352,0 | 392,0 | 16,0 | 16,0 | 15,0 | 178,60 | 40.274 | 2.288,0 | 2.547,0 | 15,02 | 16.077 | 820,0 | 1.252,0 | 9,49 | ||
| HP 400 x 158 | 158,1 | 356,0 | 394,0 | 18,0 | 18,0 | 15,0 | 201,40 | 45.939 | 2.581,0 | 2.888,0 | 15,10 | 18.368 | 932,0 | 1.425,0 | 9,55 | ||
| HP 400 x 176 | 176,1 | 360,0 | 396,0 | 20,0 | 20,0 | 15,0 | 224,30 | 51.766 | 2.876,0 | 3.235,0 | 15,19 | 20.725 | 1.047,0 | 1.603,0 | 9,61 | ||
| HP 400 x 194 | 194,2 | 364,0 | 398,0 | 22,0 | 22,0 | 15,0 | 247,50 | 57.759 | 3.174,0 | 3.588,0 | 15,28 | 23.149 | 1.163,0 | 1.784,0 | 9,67 | ||
| HP 400 x 213 | 212,5 | 368,0 | 400,0 | 24,0 | 24,0 | 15,0 | 270,70 | 63.921 | 3.474,0 | 3.947,0 | 15,37 | 25.642 | 1.282,0 | 1.969,0 | 9,73 | ||
| HP 400 x 231 | 230,9 | 372,0 | 402,0 | 26,0 | 26,0 | 15,0 | 294,20 | 70.255 | 3.777,0 | 4.312,0 | 15,45 | 28.204 | 1.403,0 | 2.158,0 | 9,79 | ||
