Gamme UB
Poutrelles universelles britanniques

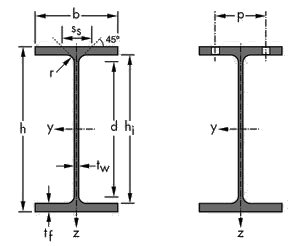

Poutrelles universelles britanniques| Désignation | G kg/m | Dimensions | I cm² | Valeurs statiques | Equivalent 1 | Equivalent 2 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| h mm | b mm | tw mm | tf mm | r mm | Axe fort | Axe faible | |||||||||||
| Iy cm4 | Wely cm³ | Wply cm³ | iy cm | Iz cm4 | Welz cm³ | Wplz cm³ | iz cm | ||||||||||
| UB 152 x 89 x 16 | 16,0 | 152,4 | 88,7 | 4,5 | 7,7 | 7,6 | 20,30 | 834 | 109,0 | 123,0 | 6,41 | 90 | 20,0 | 31,0 | 2,10 | ||
| UB 178 x 102 x 19 | 19,0 | 177,8 | 101,2 | 4,8 | 7,9 | 7,6 | 24,30 | 1.356 | 153,0 | 171,0 | 7,48 | 137 | 27,0 | 42,0 | 2,37 | ||
| UB 203 x 102 x 23 | 23,1 | 203,2 | 101,8 | 5,4 | 9,3 | 7,6 | 29,40 | 2.105 | 207,0 | 234,0 | 8,46 | 164 | 32,0 | 50,0 | 2,36 | ||
| UB 203 x 133 x 25 | 25,1 | 203,2 | 133,2 | 5,7 | 7,8 | 7,6 | 32,00 | 2.340 | 230,0 | 258,0 | 8,56 | 308 | 46,0 | 71,0 | 3,10 | ||
| UB 203 x 133 x 30 | 30,0 | 206,8 | 133,9 | 6,4 | 9,6 | 7,6 | 38,20 | 2.896 | 280,0 | 314,0 | 8,71 | 385 | 57,0 | 88,0 | 3,17 | ||
| UB 254 x 102 x 22 | 22,0 | 254,0 | 101,6 | 5,7 | 6,8 | 7,6 | 28,00 | 2.841 | 224,0 | 259,0 | 10,07 | 119 | 23,0 | 37,0 | 2,06 | W 250 x 100 x 22.3 | |
| UB 254 x 102 x 25 | 25,2 | 257,2 | 101,9 | 6,0 | 8,4 | 7,6 | 32,00 | 3.415 | 266,0 | 306,0 | 10,32 | 149 | 29,0 | 46,0 | 2,15 | W 250 x 100 x 25.3 | |
| UB 254 x 102 x 28 | 28,3 | 260,4 | 102,2 | 6,3 | 10,0 | 7,6 | 36,10 | 4.005 | 308,0 | 353,0 | 10,54 | 179 | 35,0 | 55,0 | 2,22 | W 250 x 100 x 28.4 | |
| UB 254 x 146 x 31 | 31,1 | 251,4 | 146,1 | 6,0 | 8,6 | 7,6 | 39,70 | 4.413 | 351,0 | 393,0 | 10,55 | 448 | 61,0 | 94,0 | 3,36 | ||
| UB 254 x 146 x 37 | 37,0 | 256,0 | 146,4 | 6,3 | 10,9 | 7,6 | 47,20 | 5.537 | 433,0 | 483,0 | 10,83 | 571 | 78,0 | 119,0 | 3,48 | ||
| UB 254 x 146 x 43 | 43,0 | 259,6 | 147,3 | 7,2 | 12,7 | 7,6 | 54,80 | 6.544 | 504,0 | 566,0 | 10,93 | 677 | 92,0 | 141,0 | 3,52 | ||
| UB 305 x 102 x 25 | 24,8 | 305,1 | 101,6 | 5,8 | 7,0 | 7,6 | 31,60 | 4.455 | 292,0 | 342,0 | 11,87 | 123 | 24,0 | 39,0 | 1,97 | ||
| UB 305 x 102 x 28 | 28,2 | 308,7 | 101,8 | 6,0 | 8,8 | 7,6 | 35,90 | 5.366 | 348,0 | 403,0 | 12,23 | 155 | 31,0 | 48,0 | 2,08 | W 310 x 100 x 28.3 | |
| UB 305 x 102 x 33 | 32,8 | 312,7 | 102,4 | 6,6 | 10,8 | 7,6 | 41,80 | 6.501 | 416,0 | 481,0 | 12,47 | 194 | 38,0 | 60,0 | 2,15 | W 310 x 100 x 32.7 | |
| UB 305 x 165 x 40 | 40,3 | 303,4 | 165,0 | 6,0 | 10,2 | 8,9 | 51,30 | 8.503 | 561,0 | 623,0 | 12,87 | 764 | 93,0 | 142,0 | 3,86 | ||
| UB 305 x 165 x 46 | 46,1 | 306,6 | 165,7 | 6,7 | 11,8 | 8,9 | 58,80 | 9.899 | 646,0 | 720,0 | 12,98 | 896 | 108,0 | 166,0 | 3,90 | ||
| UB 305 x 165 x 54 | 54,0 | 310,4 | 166,9 | 7,9 | 13,7 | 8,9 | 68,80 | 11.696 | 754,0 | 846,0 | 13,04 | 1.063 | 127,0 | 196,0 | 3,93 | ||
| UB 356 x 127 x 33 | 33,1 | 349,0 | 125,4 | 6,0 | 8,5 | 10,2 | 42,10 | 8.250 | 473,0 | 543,0 | 13,99 | 280 | 45,0 | 70,0 | 2,58 | W 360 x 130 x 32.9 | |
| UB 356 x 127 x 39 | 39,1 | 353,4 | 126,0 | 6,6 | 10,7 | 10,2 | 49,80 | 10.172 | 576,0 | 659,0 | 14,30 | 358 | 57,0 | 89,0 | 2,68 | W 360 x 130 x 39 | |
| UB 356 x 171 x 45 | 45,0 | 351,4 | 171,1 | 7,0 | 9,7 | 10,2 | 57,30 | 12.066 | 687,0 | 775,0 | 14,51 | 811 | 95,0 | 147,0 | 3,76 | ||
| Désignation | G kg/m | Dimensions | I cm² | Valeurs statiques | Equivalent 1 | Equivalent 2 | |||||||||||
| h mm | b mm | tw mm | tf mm | r mm | Axe fort | Axe faible | |||||||||||
| Iy cm4 | Wely cm³ | Wply cm³ | iy cm | Iz cm4 | Welz cm³ | Wplz cm³ | iz cm | ||||||||||
| UB 356 x 171 x 51 | 51,0 | 355,0 | 171,5 | 7,4 | 11,5 | 10,2 | 64,90 | 14.136 | 796,0 | 896,0 | 14,76 | 968 | 113,0 | 174,0 | 3,86 | ||
| UB 356 x 171 x 57 | 57,0 | 358,0 | 172,2 | 8,1 | 13,0 | 10,2 | 72,60 | 16.038 | 896,0 | 1.010,0 | 14,87 | 1.108 | 129,0 | 199,0 | 3,91 | W 360 x 170 x 57.8 | IPE 360 |
| UB 356 x 171 x 67 | 67,1 | 363,4 | 173,2 | 9,1 | 15,7 | 10,2 | 85,50 | 19.463 | 1.071,0 | 1.211,0 | 15,09 | 1.362 | 157,0 | 243,0 | 3,99 | ||
| UB 406 x 140 x 39 | 39,0 | 398,0 | 141,8 | 6,4 | 8,6 | 10,2 | 49,70 | 12.508 | 629,0 | 724,0 | 15,87 | 410 | 58,0 | 91,0 | 2,87 | W 410 x 140 x 38.8 | |
| UB 406 x 140 x 46 | 46,0 | 403,2 | 142,2 | 6,8 | 11,2 | 10,2 | 58,60 | 15.685 | 778,0 | 888,0 | 16,35 | 538 | 76,0 | 118,0 | 3,03 | W 410 x 140 x 46.1 | |
| UB 406 x 178 x 54 | 54,1 | 402,6 | 177,7 | 7,7 | 10,9 | 10,2 | 69,00 | 18.722 | 930,0 | 1.055,0 | 16,48 | 1.021 | 115,0 | 178,0 | 3,85 | W 410 x 180 x 53 | |
| UB 406 x 178 x 60 | 60,1 | 406,4 | 177,9 | 7,9 | 12,8 | 10,2 | 76,50 | 21.596 | 1.063,0 | 1.199,0 | 16,80 | 1.203 | 135,0 | 209,0 | 3,97 | W 410 x 180 x 60 | |
| UB 406 x 178 x 67 | 67,1 | 409,4 | 178,8 | 8,8 | 14,3 | 10,2 | 85,50 | 24.331 | 1.189,0 | 1.346,0 | 16,87 | 1.365 | 153,0 | 237,0 | 3,99 | W 410 x 180 x 67 | |
| UB 406 x 178 x 74 | 74,2 | 412,8 | 179,5 | 9,5 | 16,0 | 10,2 | 94,50 | 27.310 | 1.323,0 | 1.501,0 | 17,00 | 1.545 | 172,0 | 267,0 | 4,04 | W 410 x 180 x 75 | |
| UB 457 x 152 x 52 | 52,3 | 449,8 | 152,4 | 7,6 | 10,9 | 10,2 | 66,60 | 21.369 | 950,0 | 1.096,0 | 17,91 | 645 | 85,0 | 133,0 | 3,11 | W 460 x 150 x 52 | |
| UB 457 x 152 x 60 | 59,8 | 454,6 | 152,9 | 8,1 | 13,3 | 10,2 | 76,20 | 25.500 | 1.122,0 | 1.287,0 | 18,29 | 795 | 104,0 | 163,0 | 3,23 | W 460 x 150 x 60 | |
| UB 457 x 152 x 67 | 67,2 | 458,0 | 153,8 | 9,0 | 15,0 | 10,2 | 85,60 | 28.927 | 1.263,0 | 1.453,0 | 18,39 | 913 | 119,0 | 187,0 | 3,27 | W 460 x 150 x 68 | |
| UB 457 x 152 x 74 | 74,2 | 462,0 | 154,4 | 9,6 | 17,0 | 10,2 | 94,50 | 32.674 | 1.414,0 | 1.627,0 | 18,60 | 1.047 | 136,0 | 213,0 | 3,33 | ||
| UB 457 x 152 x 82 | 82,1 | 465,8 | 155,3 | 10,5 | 18,9 | 10,2 | 104,50 | 36.589 | 1.571,0 | 1.812,0 | 18,71 | 1.185 | 153,0 | 240,0 | 3,37 | ||
| UB 457 x 191 x 67 | 67,1 | 453,4 | 189,9 | 8,5 | 12,7 | 10,2 | 85,50 | 29.380 | 1.296,0 | 1.471,0 | 18,54 | 1.452 | 153,0 | 237,0 | 4,12 | W 460 x 190 x 67 | |
| UB 457 x 191 x 74 | 74,3 | 457,0 | 190,4 | 9,0 | 14,5 | 10,2 | 94,60 | 33.319 | 1.458,0 | 1.653,0 | 18,76 | 1.671 | 176,0 | 272,0 | 4,20 | W 460 x 190 x 74 | |
| UB 457 x 191 x 82 | 82,0 | 460,0 | 191,3 | 9,9 | 16,0 | 10,2 | 104,50 | 37.051 | 1.611,0 | 1.831,0 | 18,83 | 1.871 | 196,0 | 304,0 | 4,23 | W 460 x 190 x 82 | |
| UB 457 x 191 x 89 | 89,3 | 463,4 | 191,9 | 10,5 | 17,7 | 10,2 | 113,80 | 41.015 | 1.770,0 | 2.014,0 | 18,99 | 2.089 | 218,0 | 338,0 | 4,29 | W 460 x 190 x 89 | |
| UB 457 x 191 x 98 | 98,3 | 467,2 | 192,8 | 11,4 | 19,6 | 10,2 | 125,30 | 45.727 | 1.957,0 | 2.232,0 | 19,11 | 2.347 | 243,0 | 379,0 | 4,33 | W 460 x 190 x 97 | |
| UB 533 x 210 x 82 | 82,2 | 528,3 | 208,8 | 9,6 | 13,2 | 12,7 | 104,70 | 47.539 | 1.800,0 | 2.059,0 | 21,31 | 2.007 | 192,0 | 300,0 | 4,38 | W 530 x 210 x 82 | |
| Désignation | G kg/m | Dimensions | I cm² | Valeurs statiques | Equivalent 1 | Equivalent 2 | |||||||||||
| h mm | b mm | tw mm | tf mm | r mm | Axe fort | Axe faible | |||||||||||
| Iy cm4 | Wely cm³ | Wply cm³ | iy cm | Iz cm4 | Welz cm³ | Wplz cm³ | iz cm | ||||||||||
| UB 533 x 210 x 92 | 92,1 | 533,1 | 209,3 | 10,1 | 15,6 | 12,7 | 117,40 | 55.227 | 2.072,0 | 2.360,0 | 21,69 | 2.389 | 228,0 | 356,0 | 4,51 | W 530 x 210 x 92 | |
| UB 533 x 210 x 101 | 101,0 | 536,7 | 210,0 | 10,8 | 17,4 | 12,7 | 128,70 | 61.519 | 2.292,0 | 2.612,0 | 21,87 | 2.692 | 256,0 | 399,0 | 4,57 | W 530 x 210 x 101 | |
| UB 533 x 210 x 109 | 109,0 | 539,5 | 210,8 | 11,6 | 18,8 | 12,7 | 138,90 | 66.822 | 2.477,0 | 2.828,0 | 21,94 | 2.943 | 279,0 | 436,0 | 4,60 | W 530 x 210 x 109 | |
| UB 533 x 210 x 122 | 122,0 | 544,5 | 211,9 | 12,7 | 21,3 | 12,7 | 155,40 | 76.043 | 2.793,0 | 3.196,0 | 22,12 | 3.388 | 320,0 | 500,0 | 4,67 | W 530 x 210 x 123 | |
| UB 610 x 229 x 101 | 101,2 | 602,6 | 227,6 | 10,5 | 14,8 | 12,7 | 128,90 | 75.780 | 2.515,0 | 2.881,0 | 24,24 | 2.915 | 256,0 | 400,0 | 4,75 | W 610 x 230 x 101 | |
| UB 610 x 229 x 113 | 113,0 | 607,6 | 228,2 | 11,1 | 17,3 | 12,7 | 144,00 | 87.319 | 2.874,0 | 3.281,0 | 24,63 | 3.434 | 301,0 | 469,0 | 4,88 | W 610 x 230 x 113 | |
| UB 610 x 229 x 125 | 125,1 | 612,2 | 229,0 | 11,9 | 19,6 | 12,7 | 159,30 | 98.610 | 3.222,0 | 3.676,0 | 24,88 | 3.932 | 343,0 | 535,0 | 4,97 | W 610 x 230 x 125 | |
| UB 610 x 229 x 140 | 139,9 | 617,2 | 230,2 | 13,1 | 22,1 | 12,7 | 178,20 | 111.777 | 3.622,0 | 4.142,0 | 25,05 | 4.505 | 391,0 | 611,0 | 5,03 | W 610 x 230 x 140 | |
| UB 610 x 229 x 153 | 153,6 | 623,0 | 229,0 | 14,0 | 24,9 | 12,7 | 195,70 | 125.134 | 4.017,0 | 4.600,0 | 25,29 | 4.998 | 437,0 | 682,0 | 5,05 | W 610 x 230 x 153 | |
| UB 610 x 305 x 149 | 149,2 | 612,4 | 304,8 | 11,8 | 19,7 | 16,5 | 190,00 | 125.876 | 4.111,0 | 4.594,0 | 25,74 | 9.308 | 611,0 | 937,0 | 7,00 | ||
| UB 610 x 305 x 179 | 179,0 | 620,2 | 307,1 | 14,1 | 23,6 | 16,5 | 228,10 | 153.024 | 4.935,0 | 5.547,0 | 25,90 | 11.408 | 743,0 | 1.144,0 | 7,07 | ||
| UB 610 x 305 x 238 | 238,1 | 635,8 | 311,4 | 18,4 | 31,4 | 16,5 | 303,30 | 209.471 | 6.589,0 | 7.486,0 | 26,28 | 15.837 | 1.017,0 | 1.574,0 | 7,23 | ||
| UB 686 x 254 x 125 | 125,2 | 677,9 | 253,0 | 11,7 | 16,2 | 15,2 | 159,50 | 117.992 | 3.481,0 | 3.994,0 | 27,20 | 4.383 | 346,0 | 542,0 | 5,24 | W 690 x 250 x 125 | |
| UB 686 x 254 x 140 | 140,1 | 683,5 | 253,7 | 12,4 | 19,0 | 15,2 | 178,40 | 136.267 | 3.987,0 | 4.558,0 | 27,64 | 5.183 | 409,0 | 638,0 | 5,39 | W 690 x 250 x 140 | |
| UB 686 x 254 x 152 | 152,4 | 687,5 | 254,5 | 13,2 | 21,0 | 15,2 | 194,10 | 150.355 | 4.374,0 | 5.000,0 | 27,83 | 5.784 | 455,0 | 710,0 | 5,46 | W 690 x 250 x 152 | |
| UB 686 x 254 x 170 | 170,2 | 692,9 | 255,8 | 14,5 | 23,7 | 15,2 | 216,80 | 170.326 | 4.916,0 | 5.631,0 | 28,03 | 6.630 | 518,0 | 811,0 | 5,53 | W 690 x 250 x 170 | |
| UB 762 x 267 x 134 | 133,8 | 750,0 | 264,0 | 12,0 | 15,5 | 16,5 | 170,50 | 150.525 | 4.014,0 | 4.640,0 | 29,72 | 4.766 | 361,0 | 568,0 | 5,29 | ||
| UB 762 x 267 x 147 | 146,9 | 754,0 | 265,2 | 12,8 | 17,5 | 16,5 | 187,20 | 168.502 | 4.470,0 | 5.156,0 | 30,00 | 5.455 | 411,0 | 647,0 | 5,40 | W 760 x 265 x 147 | IPE 750 x 147 |
| UB 762 x 267 x 173 | 173,0 | 762,2 | 266,7 | 14,3 | 21,6 | 16,5 | 220,40 | 205.282 | 5.387,0 | 6.198,0 | 30,52 | 6.850 | 514,0 | 807,0 | 5,58 | W 760 x 265 x 173 | IPE 750 x 173 |
| UB 762 x 267 x 197 | 196,8 | 769,8 | 268,0 | 15,6 | 25,4 | 16,5 | 250,70 | 239.957 | 6.234,0 | 7.167,0 | 30,94 | 8.175 | 610,0 | 959,0 | 5,71 | W 760 x 265 x 196 | IPE 750 x 196 |
| Désignation | G kg/m | Dimensions | I cm² | Valeurs statiques | Equivalent 1 | Equivalent 2 | |||||||||||
| h mm | b mm | tw mm | tf mm | r mm | Axe fort | Axe faible | |||||||||||
| Iy cm4 | Wely cm³ | Wply cm³ | iy cm | Iz cm4 | Welz cm³ | Wplz cm³ | iz cm | ||||||||||
| UB 838 x 292 x 176 | 175,9 | 834,9 | 291,7 | 14,0 | 18,8 | 17,8 | 224,00 | 246.021 | 5.893,0 | 6.808,0 | 33,14 | 7.799 | 535,0 | 842,0 | 5,90 | W 840 x 295 x 176 | |
| UB 838 x 292 x 194 | 193,8 | 840,7 | 292,4 | 14,7 | 21,7 | 17,8 | 246,80 | 279.175 | 6.641,0 | 7.640,0 | 33,63 | 9.066 | 620,0 | 974,0 | 6,06 | W 840 x 295 x 193 | |
| UB 838 x 292 x 226 | 226,5 | 850,9 | 293,8 | 16,1 | 26,8 | 17,8 | 288,60 | 339.704 | 7.985,0 | 9.155,0 | 34,31 | 11.360 | 773,0 | 1.212,0 | 6,27 | W 840 x 295 x 226 | |
| UB 914 x 305 x 201 | 200,9 | 903,0 | 303,3 | 15,1 | 20,2 | 19,1 | 255,90 | 325.254 | 7.204,0 | 8.351,0 | 35,65 | 9.423 | 621,0 | 982,0 | 6,07 | W 920 x 310 x 201 | |
| UB 914 x 305 x 224 | 224,2 | 910,4 | 304,1 | 15,9 | 23,9 | 19,1 | 285,70 | 376.414 | 8.269,0 | 9.535,0 | 36,30 | 11.236 | 739,0 | 1.163,0 | 6,27 | W 920 x 310 x 223 | |
| UB 914 x 305 x 253 | 253,4 | 918,4 | 305,5 | 17,3 | 27,9 | 19,1 | 322,80 | 436.305 | 9.501,0 | 10.942,0 | 36,76 | 13.301 | 871,0 | 1.371,0 | 6,42 | W 920 x 310 x 253 | |
| UB 914 x 305 x 289 | 289,1 | 926,6 | 307,7 | 19,5 | 32,0 | 19,1 | 368,30 | 504.187 | 10.883,0 | 12.570,0 | 37,00 | 15.597 | 1.014,0 | 1.601,0 | 6,51 | W 920 x 310 x 289 | |
| UB 914 x 419 x 343 | 343,3 | 911,8 | 418,5 | 19,4 | 32,0 | 24,1 | 437,30 | 625.780 | 13.726,0 | 15.477,0 | 37,83 | 39.156 | 1.871,0 | 2.890,0 | 9,46 | W 920 x 420 x 342 | HL 920 x 342 |
| UB 914 x 419 x 388 | 388,0 | 921,0 | 420,5 | 21,4 | 36,6 | 24,1 | 494,20 | 719.635 | 15.627,0 | 17.665,0 | 38,16 | 45.438 | 2.161,0 | 3.341,0 | 9,59 | W 920 x 420 x 387 | HL 920 x 387 |
| UB 1016 x 305 x 222 | 221,5 | 970,0 | 300,0 | 16,0 | 21,0 | 30,0 | 282,20 | 406.451 | 8.380,0 | 9.777,0 | 37,95 | 9.501 | 633,0 | 1.016,0 | 5,80 | W 1000 x 300 x 222 | HE 1000 AA |
| UB 1016 x 305 x 249 | 248,7 | 980,0 | 300,0 | 16,5 | 26,0 | 30,0 | 316,90 | 481.079 | 9.818,0 | 11.347,0 | 38,97 | 11.754 | 784,0 | 1.245,0 | 6,09 | W 1000 x 300 x 249 | |
| UB 1016 x 305 x 272 | 272,3 | 990,0 | 300,0 | 16,5 | 31,0 | 30,0 | 346,90 | 553.846 | 11.189,0 | 12.825,0 | 39,96 | 14.004 | 934,0 | 1.470,0 | 6,35 | W 1000 x 300 x 272 | HE 1000 A |
| UB 1016 x 305 x 314 | 314,3 | 1.000,0 | 300,0 | 19,1 | 35,9 | 30,0 | 400,40 | 644.211 | 12.884,0 | 14.851,0 | 40,11 | 16.232 | 1.082,0 | 1.713,0 | 6,37 | W 1000 x 300 x 314 | HE 1000 B |
| UB 1016 x 305 x 349 | 349,4 | 1.008,0 | 302,0 | 21,1 | 40,0 | 30,0 | 445,10 | 722.965 | 14.345,0 | 16.590,0 | 40,30 | 18.460 | 1.223,0 | 1.941,0 | 6,44 | W 1000 x 300 x 350 | HE 1000 M |
| UB 1016 x 305 x 393 | 392,7 | 1.016,0 | 303,0 | 24,4 | 43,9 | 30,0 | 500,20 | 807.688 | 15.899,0 | 18.540,0 | 40,18 | 20.496 | 1.353,0 | 2.168,0 | 6,40 | W 1000 x 300 x 393 | HE 1000 x 393 |
| UB 1016 x 305 x 415 | 415,0 | 1.020,0 | 304,0 | 26,0 | 46,0 | 30,0 | 528,70 | 853.121 | 16.728,0 | 19.572,0 | 40,17 | 21.707 | 1.428,0 | 2.298,0 | 6,41 | W 1000 x 300 x 415 | HE 1000 x 415 |
| UB 1016 x 305 x 438 | 437,4 | 1.026,0 | 305,0 | 27,0 | 49,0 | 30,0 | 557,20 | 909.843 | 17.736,0 | 20.768,0 | 40,41 | 23.357 | 1.532,0 | 2.464,0 | 6,47 | HE 1000 x 438 | W 1000 x 300 x 438 |
| UB 1016 x 305 x 487 | 487,0 | 1.036,0 | 309,0 | 30,0 | 54,1 | 30,0 | 620,40 | 1.022.494 | 19.739,0 | 23.224,0 | 40,60 | 26.850 | 1.738,0 | 2.808,0 | 6,58 | HE 1000 x 488 | |
| UB 1016 x 305 x 494 | 493,9 | 1.036,0 | 309,0 | 31,0 | 54,0 | 30,0 | 629,10 | 1.027.959 | 19.845,0 | 23.413,0 | 40,42 | 26.824 | 1.736,0 | 2.818,0 | 6,53 | W 1000 x 300 x 494 | HE 1000 x 494 |
| UB 1016 x 305 x 584 | 583,8 | 1.056,0 | 314,0 | 36,0 | 64,0 | 30,0 | 743,70 | 1.246.071 | 23.600,0 | 28.039,0 | 40,93 | 33.433 | 2.130,0 | 3.475,0 | 6,70 | W 1000 x 300 x 584 | HE 1000 x 584 |
| Désignation | G kg/m | Dimensions | I cm² | Valeurs statiques | Equivalent 1 | Equivalent 2 | |||||||||||
| h mm | b mm | tw mm | tf mm | r mm | Axe fort | Axe faible | |||||||||||
| Iy cm4 | Wely cm³ | Wply cm³ | iy cm | Iz cm4 | Welz cm³ | Wplz cm³ | iz cm | ||||||||||
| UBP 203 x 203 x 45 | 44,9 | 200,2 | 205,9 | 9,5 | 9,5 | 10,2 | 57,20 | 4.100 | 410,0 | 459,0 | 8,46 | 1.384 | 134,0 | 206,0 | 4,92 | HP 200 x 43 | |
| UBP 203 x 203 x 54 | 53,9 | 204,0 | 207,7 | 11,3 | 11,4 | 10,2 | 68,70 | 5.027 | 493,0 | 557,0 | 8,55 | 1.705 | 164,0 | 252,0 | 4,98 | HP 200 x 53 | |
| UBP 254 x 254 x 63 | 63,0 | 247,1 | 256,6 | 10,6 | 10,7 | 12,7 | 80,20 | 8.860 | 717,0 | 799,0 | 10,51 | 3.016 | 235,0 | 360,0 | 6,13 | HP 250 x 62 | |
| UBP 254 x 254 x 71 | 71,0 | 249,7 | 258,0 | 12,0 | 12,0 | 12,7 | 90,40 | 10.071 | 807,0 | 904,0 | 10,56 | 3.439 | 267,0 | 409,0 | 6,17 | ||
| UBP 254 x 254 x 85 | 85,1 | 254,3 | 260,4 | 14,4 | 14,3 | 12,7 | 108,40 | 12.284 | 966,0 | 1.092,0 | 10,65 | 4.215 | 324,0 | 498,0 | 6,24 | HP 250 x 85 | |
| UBP 305 x 305 x 79 | 78,9 | 299,3 | 306,4 | 11,0 | 11,1 | 15,2 | 100,50 | 16.444 | 1.099,0 | 1.218,0 | 12,79 | 5.326 | 348,0 | 531,0 | 7,28 | HP 305 x 79 | |
| UBP 305 x 305 x 88 | 88,0 | 301,7 | 307,8 | 12,4 | 12,3 | 15,2 | 112,10 | 18.425 | 1.221,0 | 1.360,0 | 12,82 | 5.984 | 389,0 | 595,0 | 7,31 | HP 305 x 88 | |
| UBP 305 x 305 x 95 | 94,9 | 303,7 | 308,7 | 13,3 | 13,3 | 15,2 | 121,00 | 20.045 | 1.320,0 | 1.474,0 | 12,87 | 6.529 | 423,0 | 648,0 | 7,35 | HP 305 x 95 | |
| UBP 305 x 305 x 110 | 110,0 | 307,9 | 310,7 | 15,3 | 15,4 | 15,2 | 140,10 | 23.563 | 1.531,0 | 1.720,0 | 12,97 | 7.709 | 496,0 | 762,0 | 7,42 | HP 305 x 110 | |
| UBP 305 x 305 x 126 | 126,1 | 312,3 | 312,9 | 17,5 | 17,6 | 15,2 | 160,60 | 27.408 | 1.755,0 | 1.986,0 | 13,06 | 9.002 | 575,0 | 885,0 | 7,49 | HP 305 x 126 | |
| UBP 305 x 305 x 149 | 149,1 | 318,5 | 316,0 | 20,6 | 20,7 | 15,2 | 189,90 | 33.067 | 2.076,0 | 2.370,0 | 13,20 | 10.910 | 691,0 | 1.066,0 | 7,58 | HP 305 x 149 | |
| UBP 305 x 305 x 186 | 186,0 | 328,3 | 320,9 | 25,5 | 25,6 | 15,2 | 237,00 | 42.610 | 2.596,0 | 3.003,0 | 13,41 | 14.143 | 881,0 | 1.366,0 | 7,73 | HP 305 x 186 | |
| UBP 305 x 305 x 223 | 222,9 | 337,9 | 325,7 | 30,3 | 30,4 | 15,2 | 284,00 | 52.699 | 3.119,0 | 3.653,0 | 13,62 | 17.577 | 1.079,0 | 1.680,0 | 7,87 | HP 305 x 223 | |
| UBP 356 x 368 x 83 | 84,3 | 340,0 | 367,0 | 10,0 | 10,0 | 15,2 | 107,40 | 23.207 | 1.365,0 | 1.498,0 | 14,70 | 8.243 | 449,0 | 683,0 | 8,76 | HP 360 x 84 | |
| UBP 356 x 368 x 109 | 108,9 | 346,4 | 371,0 | 12,8 | 12,9 | 15,2 | 138,70 | 30.632 | 1.769,0 | 1.956,0 | 14,86 | 10.987 | 592,0 | 903,0 | 8,90 | HP 360 x 108 | HP 360 x 109 |
| UBP 356 x 368 x 133 | 133,0 | 352,0 | 373,8 | 15,6 | 15,7 | 15,2 | 169,40 | 37.983 | 2.158,0 | 2.406,0 | 14,98 | 13.680 | 732,0 | 1.119,0 | 8,99 | HP 360 x 132 | HP 360 x 133 |
| UBP 356 x 368 x 152 | 152,0 | 356,4 | 376,0 | 17,8 | 17,9 | 15,2 | 193,70 | 43.972 | 2.468,0 | 2.767,0 | 15,07 | 15.877 | 845,0 | 1.293,0 | 9,05 | HP 360 x 152 | |
| UBP 356 x 368 x 174 | 173,9 | 361,4 | 378,5 | 20,3 | 20,4 | 15,2 | 221,50 | 51.009 | 2.823,0 | 3.186,0 | 15,18 | 18.463 | 976,0 | 1.497,0 | 9,13 | HP 360 x 174 | |
