Gamme UBP
Poutrelles-pieux britanniques à larges ailes
Poutrelles-pieux britanniques à larges ailes| Désignation | G kg/m | Dimensions | I cm² | Valeurs statiques | Equivalent 1 | Equivalent 2 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

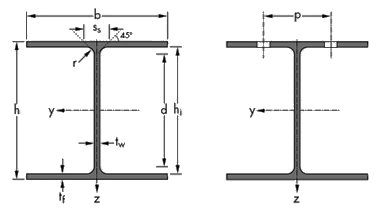

| h mm | b mm | tw mm | tf mm | r mm | Axe fort | Axe faible | |||||||||||
| Iy cm4 | Wely cm³ | Wply cm³ | iy cm | Iz cm4 | Welz cm³ | Wplz cm³ | iz cm | ||||||||||
| UBP 203 x 203 x 45 | 44,9 | 200,2 | 205,9 | 9,5 | 9,5 | 10,2 | 57,20 | 4.100 | 410,0 | 459,0 | 8,46 | 1.384 | 134,0 | 206,0 | 4,92 | HP 200 x 43 | |
| UBP 203 x 203 x 54 | 53,9 | 204,0 | 207,7 | 11,3 | 11,4 | 10,2 | 68,70 | 5.027 | 493,0 | 557,0 | 8,55 | 1.705 | 164,0 | 252,0 | 4,98 | HP 200 x 53 | |
| UBP 254 x 254 x 63 | 63,0 | 247,1 | 256,6 | 10,6 | 10,7 | 12,7 | 80,20 | 8.860 | 717,0 | 799,0 | 10,51 | 3.016 | 235,0 | 360,0 | 6,13 | HP 250 x 62 | |
| UBP 254 x 254 x 71 | 71,0 | 249,7 | 258,0 | 12,0 | 12,0 | 12,7 | 90,40 | 10.071 | 807,0 | 904,0 | 10,56 | 3.439 | 267,0 | 409,0 | 6,17 | ||
| UBP 254 x 254 x 85 | 85,1 | 254,3 | 260,4 | 14,4 | 14,3 | 12,7 | 108,40 | 12.284 | 966,0 | 1.092,0 | 10,65 | 4.215 | 324,0 | 498,0 | 6,24 | HP 250 x 85 | |
| UBP 305 x 305 x 79 | 78,9 | 299,3 | 306,4 | 11,0 | 11,1 | 15,2 | 100,50 | 16.444 | 1.099,0 | 1.218,0 | 12,79 | 5.326 | 348,0 | 531,0 | 7,28 | HP 305 x 79 | |
| UBP 305 x 305 x 88 | 88,0 | 301,7 | 307,8 | 12,4 | 12,3 | 15,2 | 112,10 | 18.425 | 1.221,0 | 1.360,0 | 12,82 | 5.984 | 389,0 | 595,0 | 7,31 | HP 305 x 88 | |
| UBP 305 x 305 x 95 | 94,9 | 303,7 | 308,7 | 13,3 | 13,3 | 15,2 | 121,00 | 20.045 | 1.320,0 | 1.474,0 | 12,87 | 6.529 | 423,0 | 648,0 | 7,35 | HP 305 x 95 | |
| UBP 305 x 305 x 110 | 110,0 | 307,9 | 310,7 | 15,3 | 15,4 | 15,2 | 140,10 | 23.563 | 1.531,0 | 1.720,0 | 12,97 | 7.709 | 496,0 | 762,0 | 7,42 | HP 305 x 110 | |
| UBP 305 x 305 x 126 | 126,1 | 312,3 | 312,9 | 17,5 | 17,6 | 15,2 | 160,60 | 27.408 | 1.755,0 | 1.986,0 | 13,06 | 9.002 | 575,0 | 885,0 | 7,49 | HP 305 x 126 | |
| UBP 305 x 305 x 149 | 149,1 | 318,5 | 316,0 | 20,6 | 20,7 | 15,2 | 189,90 | 33.067 | 2.076,0 | 2.370,0 | 13,20 | 10.910 | 691,0 | 1.066,0 | 7,58 | HP 305 x 149 | |
| UBP 305 x 305 x 186 | 186,0 | 328,3 | 320,9 | 25,5 | 25,6 | 15,2 | 237,00 | 42.610 | 2.596,0 | 3.003,0 | 13,41 | 14.143 | 881,0 | 1.366,0 | 7,73 | HP 305 x 186 | |
| UBP 305 x 305 x 223 | 222,9 | 337,9 | 325,7 | 30,3 | 30,4 | 15,2 | 284,00 | 52.699 | 3.119,0 | 3.653,0 | 13,62 | 17.577 | 1.079,0 | 1.680,0 | 7,87 | HP 305 x 223 | |
| UBP 356 x 368 x 83 | 84,3 | 340,0 | 367,0 | 10,0 | 10,0 | 15,2 | 107,40 | 23.207 | 1.365,0 | 1.498,0 | 14,70 | 8.243 | 449,0 | 683,0 | 8,76 | HP 360 x 84 | |
| UBP 356 x 368 x 109 | 108,9 | 346,4 | 371,0 | 12,8 | 12,9 | 15,2 | 138,70 | 30.632 | 1.769,0 | 1.956,0 | 14,86 | 10.987 | 592,0 | 903,0 | 8,90 | HP 360 x 108 | HP 360 x 109 |
| UBP 356 x 368 x 133 | 133,0 | 352,0 | 373,8 | 15,6 | 15,7 | 15,2 | 169,40 | 37.983 | 2.158,0 | 2.406,0 | 14,98 | 13.680 | 732,0 | 1.119,0 | 8,99 | HP 360 x 132 | HP 360 x 133 |
| UBP 356 x 368 x 152 | 152,0 | 356,4 | 376,0 | 17,8 | 17,9 | 15,2 | 193,70 | 43.972 | 2.468,0 | 2.767,0 | 15,07 | 15.877 | 845,0 | 1.293,0 | 9,05 | HP 360 x 152 | |
| UBP 356 x 368 x 174 | 173,9 | 361,4 | 378,5 | 20,3 | 20,4 | 15,2 | 221,50 | 51.009 | 2.823,0 | 3.186,0 | 15,18 | 18.463 | 976,0 | 1.497,0 | 9,13 | HP 360 x 174 | |
