Gamme HL
Poutrelles à très larges ailes

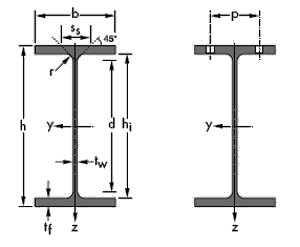

Poutrelles européennes à très larges ailesDimensions
ASTM A 6/A 6M - 07
| Désignation | G kg/m | Dimensions | I cm² | Valeurs statiques | Equivalent 1 | Equivalent 2 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| h mm | b mm | tw mm | tf mm | r mm | Axe fort | Axe faible | |||||||||||
| Iy cm4 | Wely cm³ | Wply cm³ | iy cm | Iz cm4 | Welz cm³ | Wplz cm³ | iz cm | ||||||||||
| HL 920 x 342 | 342,4 | 912,0 | 418,0 | 19,3 | 32,0 | 24,0 | 436,10 | 624.890 | 13.704,0 | 15.448,0 | 37,85 | 39.015 | 1.867,0 | 2.882,0 | 9,46 | W 920 x 420 x 342 | UB 914 x 419 x 343 |
| HL 920 x 365 | 364,6 | 916,0 | 419,0 | 20,3 | 34,3 | 24,0 | 464,40 | 670.499 | 14.640,0 | 16.523,0 | 38,00 | 42.124 | 2.011,0 | 3.106,0 | 9,52 | W 920 x 420 x 365 | |
| HL 920 x 387 | 387,0 | 921,0 | 420,0 | 21,3 | 36,6 | 24,0 | 493,00 | 718.339 | 15.599,0 | 17.629,0 | 38,17 | 45.276 | 2.156,0 | 3.332,0 | 9,58 | W 920 x 420 x 387 | UB 914 x 419 x 388 |
| HL 920 x 417 | 418,1 | 928,0 | 422,0 | 22,5 | 39,9 | 24,0 | 532,60 | 787.553 | 16.973,0 | 19.208,0 | 38,46 | 50.071 | 2.373,0 | 3.668,0 | 9,70 | W 920 x 420 x 417 | |
| HL 920 x 446 | 447,1 | 933,0 | 423,0 | 24,0 | 42,7 | 24,0 | 569,60 | 846.826 | 18.153,0 | 20.598,0 | 38,56 | 53.977 | 2.552,0 | 3.951,0 | 9,73 | W 920 x 420 x 446 | |
| HL 920 x 488 | 487,7 | 942,0 | 422,0 | 25,9 | 47,0 | 24,0 | 621,30 | 935.388 | 19.860,0 | 22.615,0 | 38,80 | 59.009 | 2.797,0 | 4.336,0 | 9,75 | W 920 x 420 x 488 | |
| HL 920 x 534 | 533,9 | 950,0 | 425,0 | 28,4 | 51,1 | 24,0 | 680,10 | 1.031.235 | 21.710,0 | 24.832,0 | 38,94 | 65.560 | 3.085,0 | 4.796,0 | 9,82 | W 920 x 420 x 534 | |
| HL 920 x 585 | 585,0 | 960,0 | 427,0 | 31,0 | 55,9 | 24,0 | 745,30 | 1.143.091 | 23.814,0 | 27.363,0 | 39,16 | 72.768 | 3.408,0 | 5.310,0 | 9,88 | W 920 x 420 x 585 | |
| HL 920 x 653 | 653,1 | 972,0 | 431,0 | 34,5 | 62,0 | 24,0 | 832,00 | 1.292.120 | 26.587,0 | 30.726,0 | 39,41 | 83.048 | 3.854,0 | 6.022,0 | 9,99 | W 920 x 420 x 653 | |
| HL 920 x 784 | 783,2 | 996,0 | 437,0 | 40,9 | 73,9 | 24,0 | 997,80 | 1.592.539 | 31.979,0 | 37.342,0 | 39,95 | 103.304 | 4.728,0 | 7.424,0 | 10,18 | W 920 x 420 x 784 | |
| HL 920 x 967 | 966,3 | 1.028,0 | 446,0 | 50,0 | 89,9 | 24,0 | 1.231,00 | 2.032.596 | 39.545,0 | 46.814,0 | 40,64 | 133.857 | 6.003,0 | 9.486,0 | 10,43 | W 920 x 420 x 967 | |
| HL 1000 x 296 | 295,8 | 982,0 | 400,0 | 16,5 | 27,0 | 30,0 | 376,90 | 618.670 | 12.600,0 | 14.220,0 | 40,52 | 28.854 | 1.443,0 | 2.235,0 | 8,75 | W 1000 x 400 x 296 | |
| HL 1000 A | 320,9 | 990,0 | 400,0 | 16,5 | 31,0 | 30,0 | 408,90 | 696.446 | 14.070,0 | 15.797,0 | 41,27 | 33.121 | 1.656,0 | 2.555,0 | 9,00 | W 1000 x 400 x 321 | |
| HL 1000 B | 370,6 | 1.000,0 | 400,0 | 19,0 | 36,0 | 30,0 | 472,10 | 812.099 | 16.242,0 | 18.326,0 | 41,48 | 38.476 | 1.924,0 | 2.976,0 | 9,03 | W 1000 x 400 x 371 | |
| HL 1000 M | 411,5 | 1.008,0 | 402,0 | 21,0 | 40,0 | 30,0 | 524,20 | 909.811 | 18.052,0 | 20.440,0 | 41,66 | 43.407 | 2.160,0 | 3.348,0 | 9,10 | W 1000 x 400 x 412 | |
| HL 1000 x 443 | 442,5 | 1.012,0 | 402,0 | 23,6 | 41,9 | 30,0 | 563,70 | 966.512 | 19.101,0 | 21.777,0 | 41,41 | 45.498 | 2.264,0 | 3.529,0 | 8,98 | W 1000 x 400 x 443 | |
| HL 1000 x 477 | 477,3 | 1.018,0 | 404,0 | 25,5 | 45,0 | 30,0 | 608,00 | 1.047.174 | 20.573,0 | 23.533,0 | 41,50 | 49.614 | 2.456,0 | 3.838,0 | 9,03 | ||
| HL 1000 x 483 | 482,9 | 1.020,0 | 404,0 | 25,4 | 46,0 | 30,0 | 615,10 | 1.067.483 | 20.931,0 | 23.923,0 | 41,66 | 50.712 | 2.510,0 | 3.919,0 | 9,08 | W 1000 x 400 x 483 | |
| HL 1000 x 539 | 539,4 | 1.030,0 | 407,0 | 28,4 | 51,1 | 30,0 | 687,20 | 1.202.538 | 23.350,0 | 26.824,0 | 41,83 | 57.632 | 2.832,0 | 4.436,0 | 9,16 | W 1000 x 400 x 539 | |
| HL 1000 x 554 | 554,1 | 1.032,0 | 408,0 | 29,5 | 52,0 | 30,0 | 705,80 | 1.232.372 | 23.883,0 | 27.496,0 | 41,79 | 59.098 | 2.897,0 | 4.547,0 | 9,15 | W 1000 x 400 x 554 | |
| Désignation | G kg/m | Dimensions | I cm² | Valeurs statiques | Equivalent 1 | Equivalent 2 | |||||||||||
| h mm | b mm | tw mm | tf mm | r mm | Axe fort | Axe faible | |||||||||||
| Iy cm4 | Wely cm³ | Wply cm³ | iy cm | Iz cm4 | Welz cm³ | Wplz cm³ | iz cm | ||||||||||
| HL 1000 x 591 | 590,9 | 1.040,0 | 409,0 | 31,0 | 55,9 | 30,0 | 752,70 | 1.331.036 | 25.597,0 | 29.530,0 | 42,05 | 64.014 | 3.130,0 | 4.916,0 | 9,22 | W 1000 x 400 x 591 | |
| HL 1000 x 642 | 641,9 | 1.048,0 | 412,0 | 34,0 | 60,0 | 30,0 | 817,70 | 1.450.590 | 27.683,0 | 32.097,0 | 42,12 | 70.284 | 3.412,0 | 5.379,0 | 9,27 | W 1000 x 400 x 642 | |
| HL 1000 x 748 | 748,5 | 1.068,0 | 417,0 | 39,0 | 70,0 | 30,0 | 953,50 | 1.731.943 | 32.433,0 | 37.882,0 | 42,62 | 85.111 | 4.082,0 | 6.459,0 | 9,45 | W 1000 x 400 x 748 | |
| HL 1000 x 825 | 824,6 | 1.082,0 | 421,0 | 42,5 | 77,0 | 30,0 | 1.050,50 | 1.939.503 | 35.850,0 | 42.083,0 | 42,97 | 96.417 | 4.580,0 | 7.264,0 | 9,58 | W 1000 x 400 x 825 | |
| HL 1000 x 883 | 883,4 | 1.092,0 | 424,0 | 45,5 | 82,0 | 30,0 | 1.125,30 | 2.096.418 | 38.396,0 | 45.265,0 | 43,16 | 104.972 | 4.952,0 | 7.874,0 | 9,66 | W 1000 x 400 x 883 | |
| HL 1100 A | 342,6 | 1.090,0 | 400,0 | 18,0 | 31,0 | 20,0 | 436,50 | 867.388 | 15.915,0 | 18.062,0 | 44,58 | 33.123 | 1.656,0 | 2.568,0 | 8,71 | W 1100 x 400 x 343 | |
| HL 1100 B | 390,2 | 1.100,0 | 400,0 | 20,0 | 36,0 | 20,0 | 497,00 | 1.005.397 | 18.280,0 | 20.781,0 | 44,98 | 38.476 | 1.924,0 | 2.988,0 | 8,80 | W 1100 x 400 x 390 | |
| HL 1100 M | 432,7 | 1.108,0 | 402,0 | 22,0 | 40,0 | 20,0 | 551,20 | 1.125.574 | 20.317,0 | 23.161,0 | 45,19 | 43.410 | 2.160,0 | 3.362,0 | 8,87 | W 1100 x 400 x 433 | |
| HL 1100 R | 498,6 | 1.118,0 | 405,0 | 26,0 | 45,0 | 20,0 | 635,20 | 1.294.060 | 23.150,0 | 26.600,0 | 45,14 | 49.984 | 2.468,0 | 3.870,0 | 8,87 | W 1100 x 400 x 499 | |
| HL 1100 x 548 | 551,5 | 1.128,0 | 407,0 | 28,0 | 50,0 | 30,0 | 702,60 | 1.456.640 | 25.827,0 | 29.727,0 | 45,53 | 56.406 | 2.772,0 | 4.359,0 | 8,96 | ||
| HL 1100 x 607 | 610,3 | 1.138,0 | 410,0 | 31,0 | 55,0 | 30,0 | 777,40 | 1.624.100 | 28.543,0 | 33.004,0 | 45,71 | 63.473 | 3.096,0 | 4.887,0 | 9,04 | ||
