Gamme UPN
Fers U normaux européens
Fers U normaux européensDimensions
DIN 1026-1: 2000, NFA 45-202: 1986

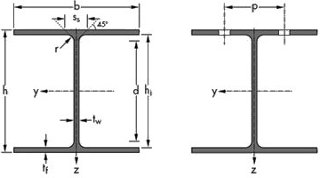

| Désignation | G kg/m | Dimensions | I cm² | Valeurs statiques | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| h mm | b mm | tw mm | tf mm | r mm | Axe fort | Axe faible | |||||||||
| Iy cm4 | Wely cm³ | Wply cm³ | iy cm | Iz cm4 | Welz cm³ | Wplz cm³ | iz cm | ||||||||
| UPN 80 | 8,6 | 80,0 | 45,0 | 6,0 | 8,0 | 8,0 | 11,00 | 106 | 27,0 | 0,0 | 3,10 | 19 | 6,0 | 0,0 | 1,33 |
| UPN 100 | 10,6 | 100,0 | 50,0 | 6,0 | 8,5 | 8,5 | 13,50 | 206 | 41,0 | 49,0 | 3,91 | 29 | 8,0 | 16,0 | 1,47 |
| UPN 120 | 13,3 | 120,0 | 55,0 | 7,0 | 9,0 | 9,0 | 17,00 | 364 | 61,0 | 73,0 | 4,62 | 43 | 11,0 | 21,0 | 1,59 |
| UPN 140 | 16,0 | 140,0 | 60,0 | 7,0 | 10,0 | 10,0 | 20,40 | 605 | 86,0 | 103,0 | 5,45 | 63 | 15,0 | 28,0 | 1,75 |
| UPN 160 | 18,8 | 160,0 | 65,0 | 7,5 | 10,5 | 10,5 | 24,00 | 925 | 116,0 | 138,0 | 6,21 | 85 | 18,0 | 35,0 | 1,89 |
| UPN 180 | 22,0 | 180,0 | 70,0 | 8,0 | 11,0 | 11,0 | 28,00 | 1.350 | 150,0 | 179,0 | 6,95 | 114 | 22,0 | 43,0 | 2,02 |
| UPN 200 | 25,3 | 200,0 | 75,0 | 8,5 | 11,5 | 11,5 | 32,20 | 1.910 | 191,0 | 228,0 | 7,70 | 148 | 27,0 | 52,0 | 2,14 |
| UPN 220 | 29,4 | 220,0 | 80,0 | 9,0 | 12,5 | 12,5 | 37,40 | 2.690 | 245,0 | 292,0 | 8,48 | 197 | 34,0 | 64,0 | 2,30 |
| UPN 240 | 33,2 | 240,0 | 85,0 | 9,5 | 13,0 | 13,0 | 42,30 | 3.600 | 300,0 | 358,0 | 9,22 | 248 | 40,0 | 76,0 | 2,42 |
| UPN 260 | 37,9 | 260,0 | 90,0 | 10,0 | 14,0 | 14,0 | 48,30 | 4.820 | 371,0 | 442,0 | 9,99 | 317 | 48,0 | 92,0 | 2,56 |
| UPN 280 | 41,8 | 280,0 | 95,0 | 10,0 | 15,0 | 15,0 | 53,30 | 6.280 | 448,0 | 532,0 | 10,90 | 399 | 57,0 | 109,0 | 2,74 |
| UPN 300 | 46,2 | 300,0 | 100,0 | 10,0 | 16,0 | 16,0 | 58,80 | 8.030 | 535,0 | 632,0 | 11,70 | 495 | 68,0 | 130,0 | 2,90 |
| UPN 320 | 59,5 | 320,0 | 100,0 | 14,0 | 17,5 | 17,5 | 75,80 | 10.870 | 679,0 | 826,0 | 12,10 | 597 | 81,0 | 152,0 | 2,81 |
| UPN 350 | 60,7 | 350,0 | 100,0 | 14,0 | 16,0 | 16,0 | 77,30 | 12.840 | 734,0 | 918,0 | 12,90 | 570 | 75,0 | 143,0 | 2,72 |
| UPN 380 | 63,1 | 380,0 | 102,0 | 13,5 | 16,0 | 16,0 | 80,40 | 15.760 | 829,0 | 1.014,0 | 14,00 | 615 | 79,0 | 148,0 | 2,77 |
| UPN 400 | 71,8 | 400,0 | 110,0 | 14,0 | 18,0 | 18,0 | 91,50 | 20.350 | 1.020,0 | 1.240,0 | 14,90 | 846 | 102,0 | 190,0 | 3,04 |
